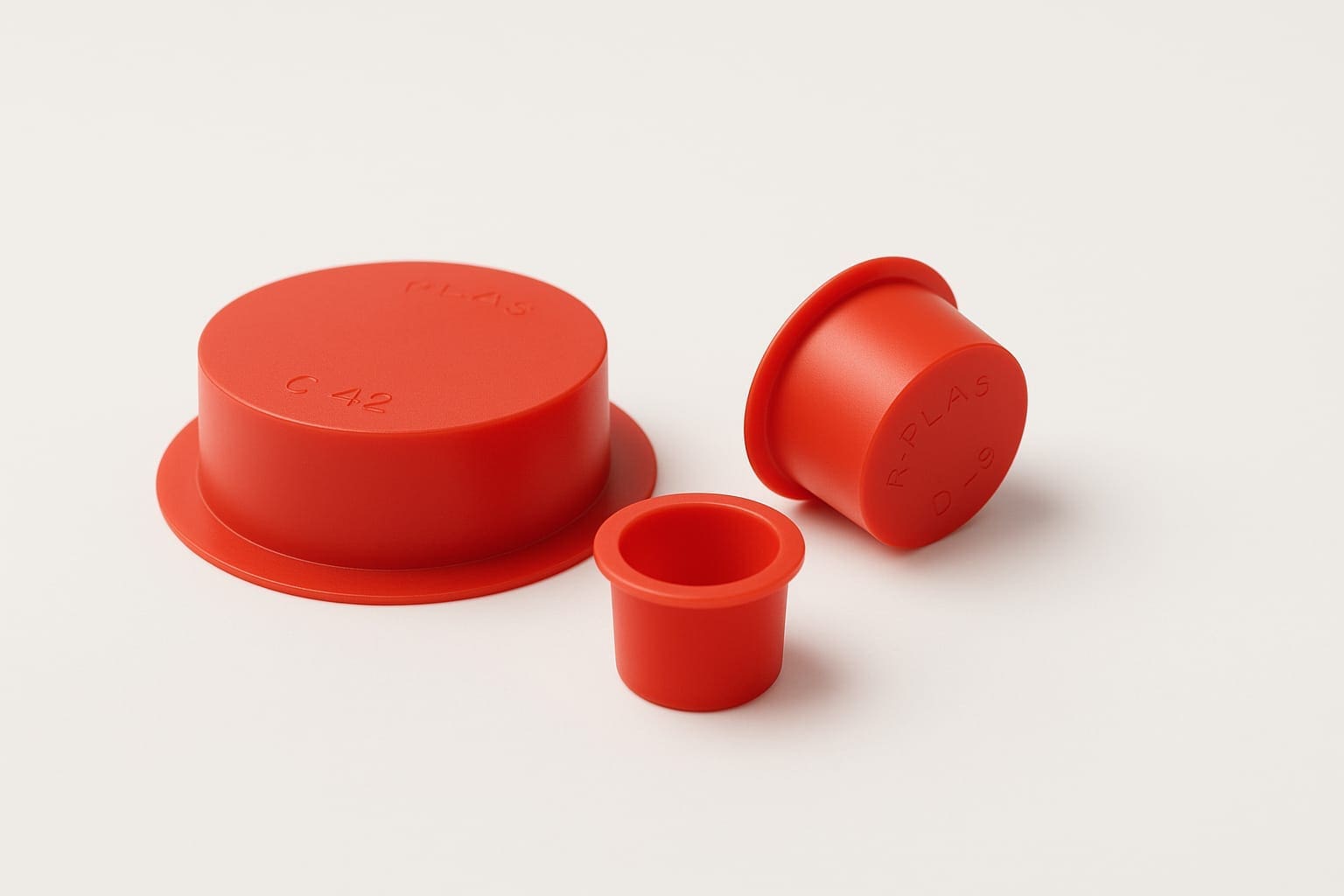

Protetores plásticos utilizados tanto internamente na proteção de furos e roscas fêmeas quanto externamente na proteção de hastes, pinos e roscas machos. Fabricados preferencialmente em polietileno de baixa densidade.
Tabela de referências dos protetores plásticos
|
CÓDIGO |
Dimensão A |
Dimensão B |
Dimensão C |
Dimensão D |
Dimensão E |
Dimensão F |
|
mm |
mm |
mm |
mm |
mm |
mm |
|
|
C 01 |
9.0 |
8.0 |
15.0 |
10.0 |
6.7 |
6.9 |
|
C 02 |
10.2 |
8.8 |
14.0 |
11.5 |
6.8 |
9.2 |
|
C 03 |
10.6 |
9.6 |
15.0 |
9.6 |
7.6 |
9.4 |
|
C 04 |
10.8 |
10.0 |
17.7 |
9.0 |
8.0 |
9.0 |
|
C 05 |
11.0 |
10.0 |
15.0 |
10.0 |
8.5 |
9.7 |
|
C 06 |
11.9 |
10.6 |
15.4 |
10.7 |
10.0 |
10.7 |
|
C 07 |
12.9 |
10.5 |
20.0 |
12.0 |
9.4 |
11.2 |
|
C 08 |
13.0 |
11.3 |
17.0 |
10.0 |
9.0 |
10.7 |
|
C 09 |
13.3 |
12.3 |
17.6 |
10.6 |
10.5 |
11.6 |
|
C 10 |
13.5 |
11.5 |
17.5 |
12.0 |
10.7 |
12.2 |
|
C 11 |
13.6 |
12.8 |
17.9 |
12.5 |
11.2 |
12.8 |
|
C 12 |
15.2 |
14.9 |
18.7 |
14.5 |
12.4 |
13.2 |
|
C 13 |
15.4 |
13.5 |
18.5 |
12.0 |
12.0 |
13.6 |
|
C 14 |
16.0 |
14.0 |
27.0 |
12.0 |
12.0 |
13.7 |
|
C 15 |
17.0 |
14.0 |
20.5 |
14.0 |
13.3 |
15.4 |
|
C 16 |
18.4 |
16.2 |
22.0 |
13.2 |
14.7 |
16.4 |
|
C 17 |
18.5 |
17.3 |
21.8 |
17.0 |
15.7 |
16.3 |
|
C 18 |
19.3 |
17.3 |
23.4 |
14.8 |
16.0 |
18.2 |
|
C 19 |
20.5 |
16.0 |
25.0 |
12.0 |
14.8 |
18.0 |
|
C 20 |
20.8 |
18.4 |
25.0 |
14.8 |
17.0 |
18.8 |
|
C 21 |
21.5 |
19.0 |
25.4 |
14.8 |
17.5 |
19.7 |
|
C 22 |
22.0 |
21.0 |
26.0 |
20.2 |
19.5 |
20.0 |
|
C 23 |
22.5 |
20.0 |
27.5 |
16.0 |
18.0 |
20.5 |
|
C 24 |
24.2 |
22.4 |
27.9 |
16.3 |
20.5 |
23.0 |
|
C 25 |
24.4 |
23.4 |
29.6 |
16.4 |
21.6 |
22.0 |
|
C 26 |
26.0 |
23.5 |
29.5 |
17.7 |
21.5 |
23.8 |
|
C 27 |
28.3 |
26.6 |
32.7 |
20.7 |
25.3 |
25.9 |
|
C 28 |
29.2 |
25.4 |
33.0 |
18.7 |
23.8 |
27.2 |
|
C 29 |
30.4 |
27.6 |
33.8 |
19.2 |
25.5 |
28.3 |
|
C 30 |
31.0 |
28.0 |
35.0 |
19.0 |
25.7 |
28.1 |
|
C 31 |
31.4 |
28.9 |
35.7 |
19.7 |
27.9 |
30.2 |
|
C 32 |
34.3 |
33.3 |
39.0 |
24.9 |
31.0 |
32.0 |
|
C 33 |
34.6 |
31.2 |
38.0 |
19.8 |
30.7 |
33.0 |
|
C 34 |
37.0 |
33.3 |
41.3 |
24.0 |
33.0 |
35.0 |
|
C 35 |
38.8 |
37.5 |
46.3 |
17.5 |
36.3 |
37.7 |
|
C 36 |
42.4 |
39.8 |
47.1 |
18.9 |
38.6 |
41.3 |
|
C 37 |
46.5 |
44.5 |
60.0 |
17.0 |
42.3 |
44.0 |
|
C 38 |
47.7 |
43.8 |
51.3 |
19.6 |
43.1 |
46.0 |
|
C 39 |
49.5 |
45.2 |
54.0 |
25.4 |
45.2 |
47.0 |
|
C 40 |
51.8 |
50.2 |
56.8 |
26.0 |
47.5 |
48.2 |
|
C 41 |
55.3 |
51.1 |
60.0 |
37.9 |
50.0 |
51.8 |
|
C 42 |
58.3 |
55.0 |
69.7 |
19.8 |
53.8 |
56.4 |
|
C 43 |
59.0 |
54.0 |
63.5 |
25.4 |
54.0 |
59.5 |
|
C 44 |
59.7 |
56.2 |
64.0 |
26.1 |
54.0 |
58.4 |
|
C 45 |
63.1 |
57.6 |
65.9 |
25.1 |
58.0 |
61.6 |
|
C 46 |
65.0 |
62.8 |
69.8 |
22.5 |
57.8 |
59.8 |
|
C 46A |
68.0 |
65.0 |
73.0 |
19.0 |
63.4 |
66.7 |
|
C 46B |
68.0 |
64.5 |
81.0 |
25.4 |
62.0 |
66.5 |
|
C 47 |
81.5 |
78.5 |
85.7 |
27.0 |
78.0 |
80.4 |
|
C 48 |
84.0 |
83.0 |
90.0 |
19.3 |
80.8 |
82.3 |
|
C 49 |
89.0 |
86.5 |
103.5 |
20.2 |
86.2 |
87.4 |
|
C 50 |
95.0 |
89.7 |
101.7 |
25.1 |
88.2 |
93.5 |
|
C 51 |
109.0 |
105.0 |
118.5 |
31.5 |
103.0 |
107.0 |
|
C 52 |
112.0 |
110.0 |
124.5 |
24.0 |
107.0 |
110.0 |
|
C 52A |
114.5 |
113.0 |
132.5 |
20.0 |
111.0 |
112.5 |
|
C 53 |
143.5 |
139.5 |
149.5 |
25.5 |
136.5 |
140.5 |
